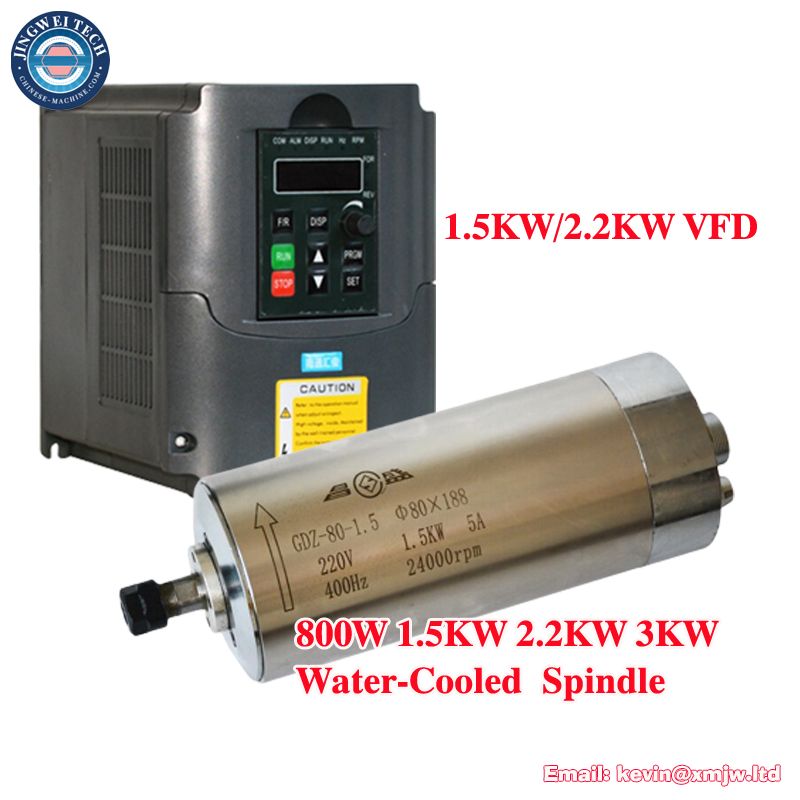

800W/1500kw/2200kw Water Cooled CNC Spindle Motor+1.5KW/2.2KW VFD Inverter ER11/ER20 Collet for CNC Router Engraving Machine

800W/1.5kw/2.2kw Water Cooled CNC Spindle Motor+1.5KW/2.2KW VFD Inverter ER11/ER20 Collet for CNC Router

Note: if you choose "No VFD Inverter", you will get only Spindle, no VFD

Spindle parameters:

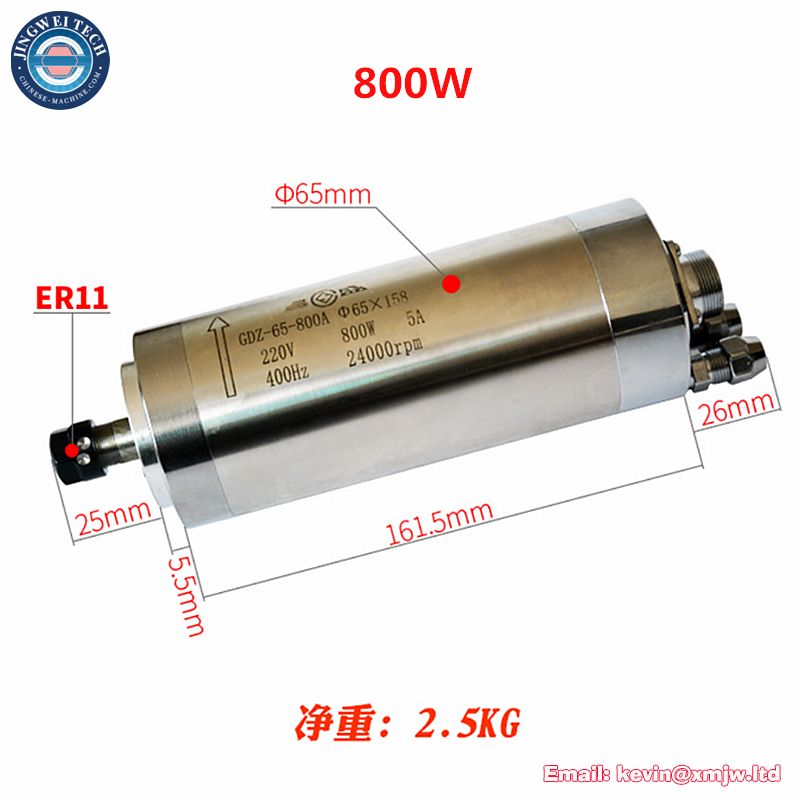

Power: 800W 65x158MMER11

Voltage: 220V (must be approved by the inverter output, can not be directly used ordinary household electric)

Current: 5A Frequency: 400Hz

Diameter: 65mm*158mm Speed :0-24000 rev / min

Clip knife diameter: 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)

Cooling: water cooling Spindle Weight: 2.5kg

--------------------------------------------------------------------------------------------------

Power: 800W 65x195MMER11

Voltage: 220V (must be approved by the inverter output, can not be directly used ordinary household electric)

Current: 5A Frequency: 400Hz

Torque: 0.61Nm Diameter: 65mm*195mm

Speed :0-24000 rev / min

Clip knife diameter: 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)

Cooling: water cooling Spindle Weight: 3kg

Bearing: 4pcs

--------------------------------------------------------------------------------------------------

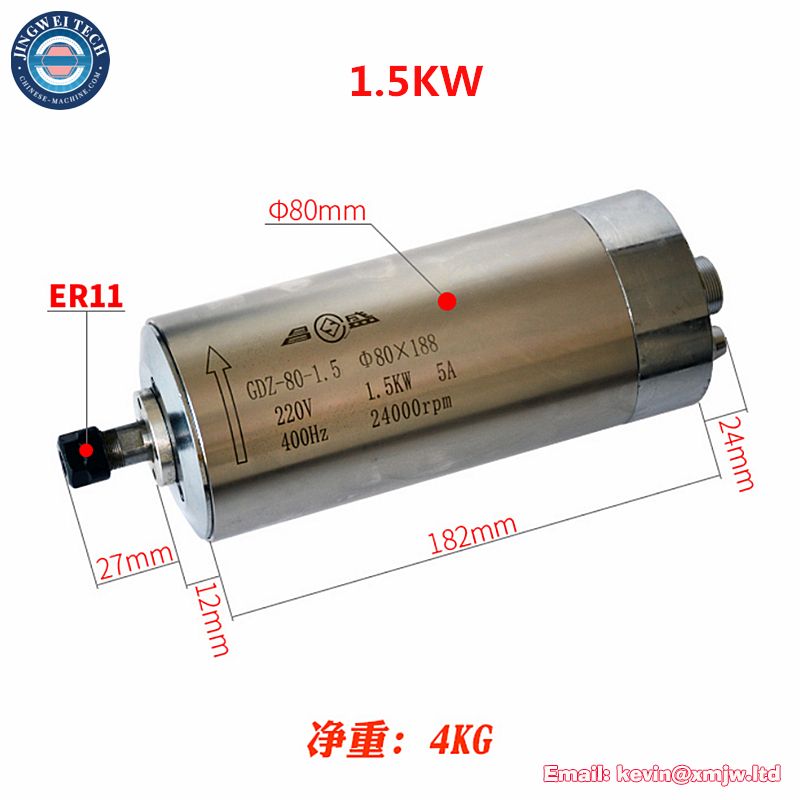

Power: 1.5KW 80x188MMER11

Voltage: 220V (must be approved by the inverter output, can not be directly used ordinary household electric)

Current: 5A Frequency: 400Hz

Diameter: 80mm*188mm Speed :0-24000 rev / min

Nut Model: ER11-A-type Cooling: water cooling

Spindle Weight: 4kg

--------------------------------------------------------------------------------------------------

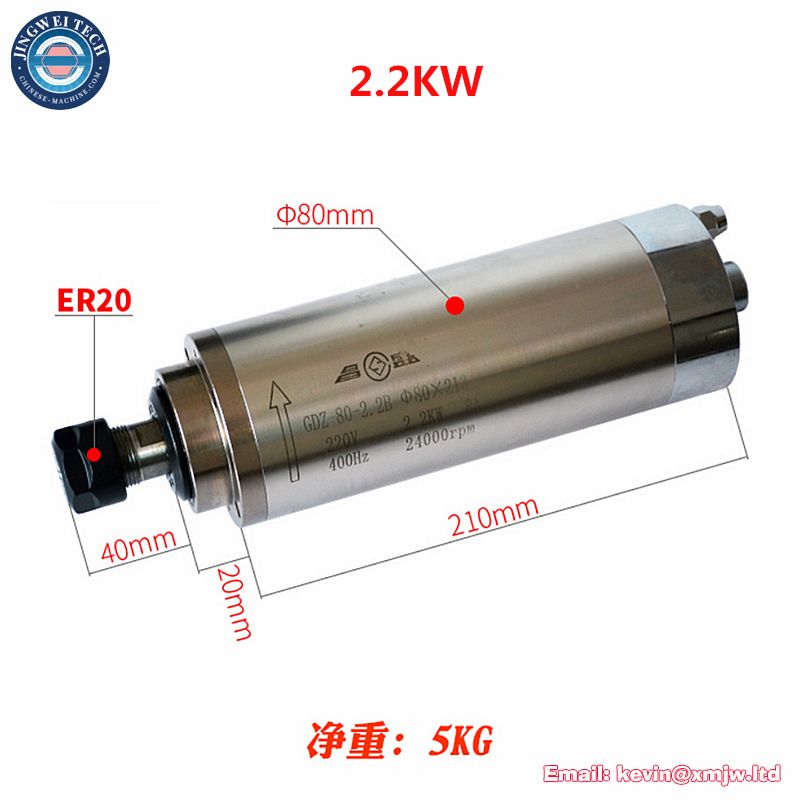

Power: 2.2KW 80X213MMER20

Voltage: 220V (must be approved by the inverter output, can not be directly used ordinary household electric)

Current: 8A Frequency: 400Hz

Diameter: 80mm*213mm Speed :0-24000 rev / min

Nut Model: ER20-A-type Cooling: water cooling

Spindle Weight: 6.0kg

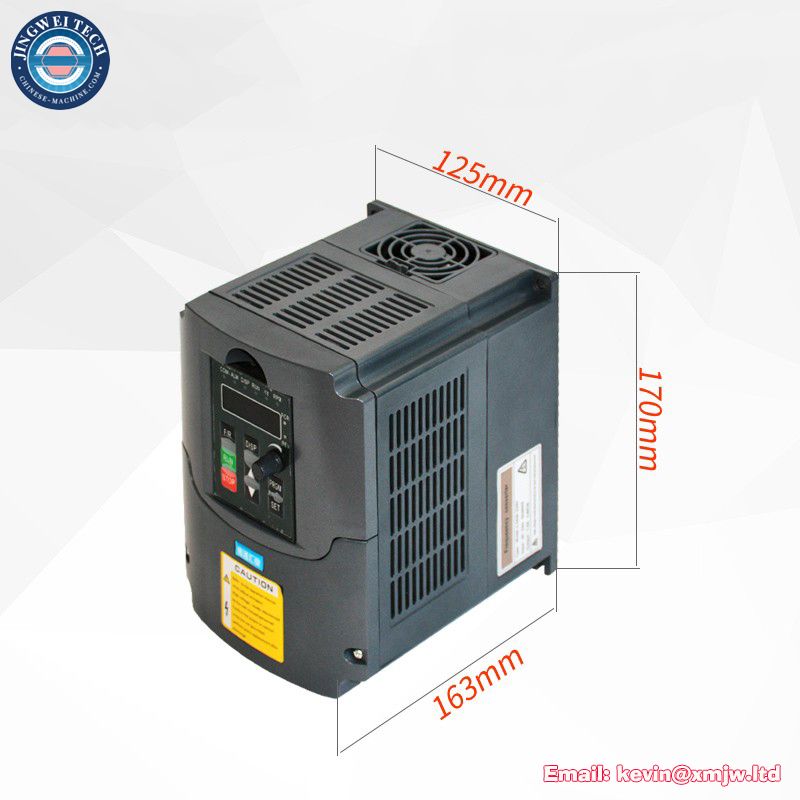

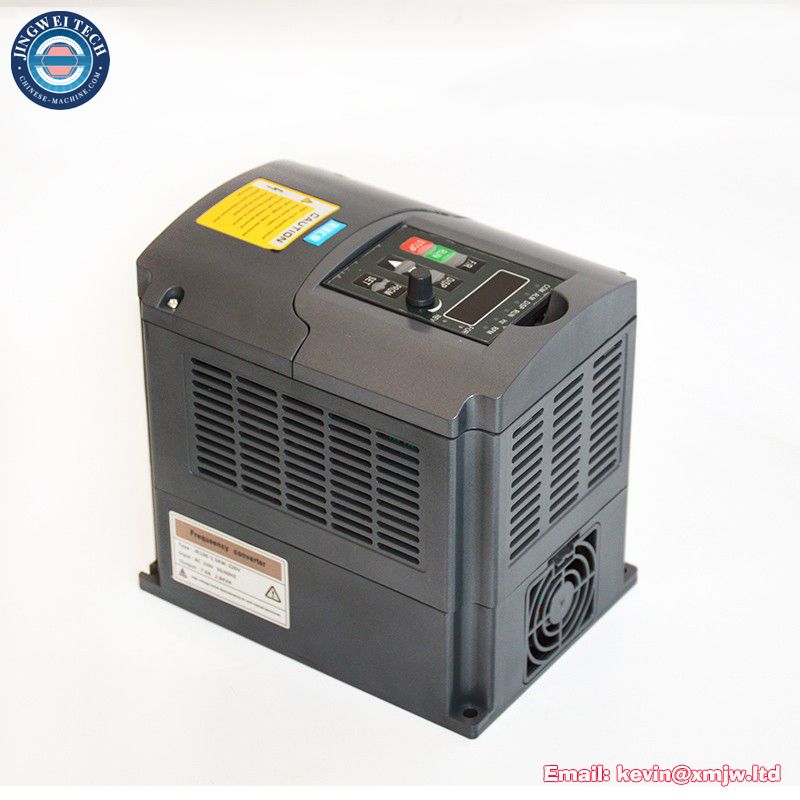

Specifications of inverter:
