practical multi-language operation automatic 3d wire forming machine cnc wire bending machine
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230808871730
- Availability: 500
Best price practical multi-language operation automatic 3d wire forming machine cnc wire bending machine
3D cnc wire forming machine Advantages & Feature:
This kind of automatic 3d wire forming machine can produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts famous brand Servo motorand screen display or customized controller.
3 groups feeding roller 2 groups straightening wheels, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.
Automatic 3d wire forming machine can be used for
1) Auto Industry area 2) Metal wire industry
3) Furniture and kitchen4) Hardware industry
5) Mattress, sofa spring srea6) Architecture area
7) Hardware Artcrafe and so on.
Automatic 3d wire forming machine main technical parameters and configurations:
|
Model |
ZX-3D-208 wire bending machine |
|
Number of shaft |
4 |
|
Diameter of the steel wire(mm) |
Hard material:Φ2.0 ~Φ 6.0 Soft material :Φ2.0 ~ Φ8.0 |
|
Number of wire feeder |
2 suits |
|
Wire rotation angle |
360 degrees unlimited number of turns |
|
Applicable wire |
Round wire, flat wire, square wire (applicable to any wire material) |
|
Data storage |
10000 data, 300 data as a group |
|
Maximum wire feed speed |
100m/min |
|
Feeding servo motor power |
3.1kw |
|
Bending Cutting motor power |
3.1kw |
|
Swing wire motor |
3.0kw |
|
Platform lifting motor power |
1.5kw |
|
Servo motor total power |
10.7kw |
|
Action direction |
Both the inner and outer molds can be raised and lowered, and the positive and negative bending |
|
Feeding accuracy |
±0.1 |
|
Internal mold angle rotation |
±180° |
|
Input power |
380V, 50HZ/60HZ or customized |
|
Machine weight |
1650kg |
|
Machine size |
3000*1300*1400mm |

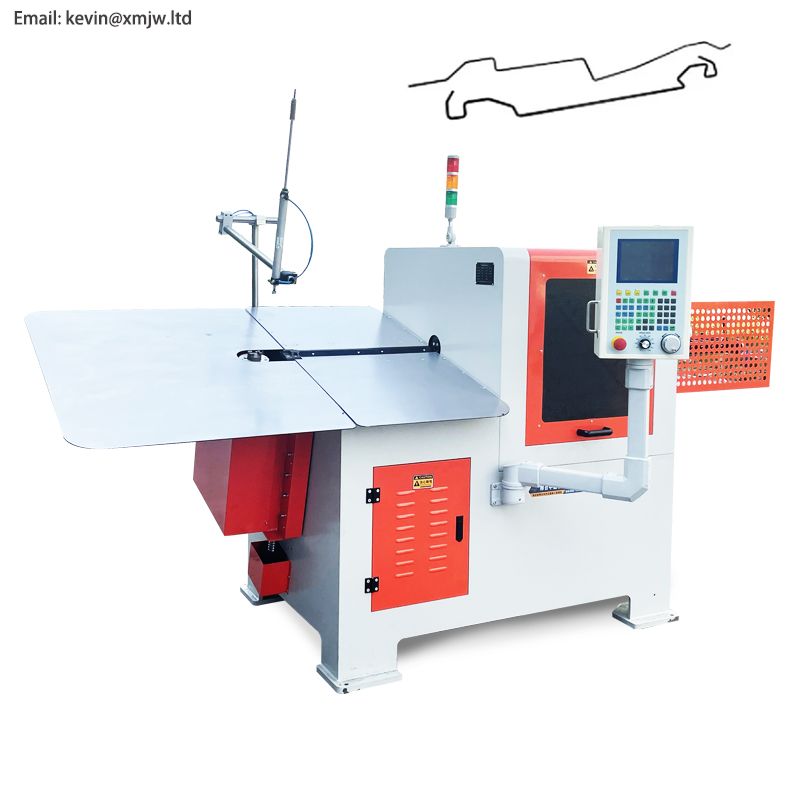

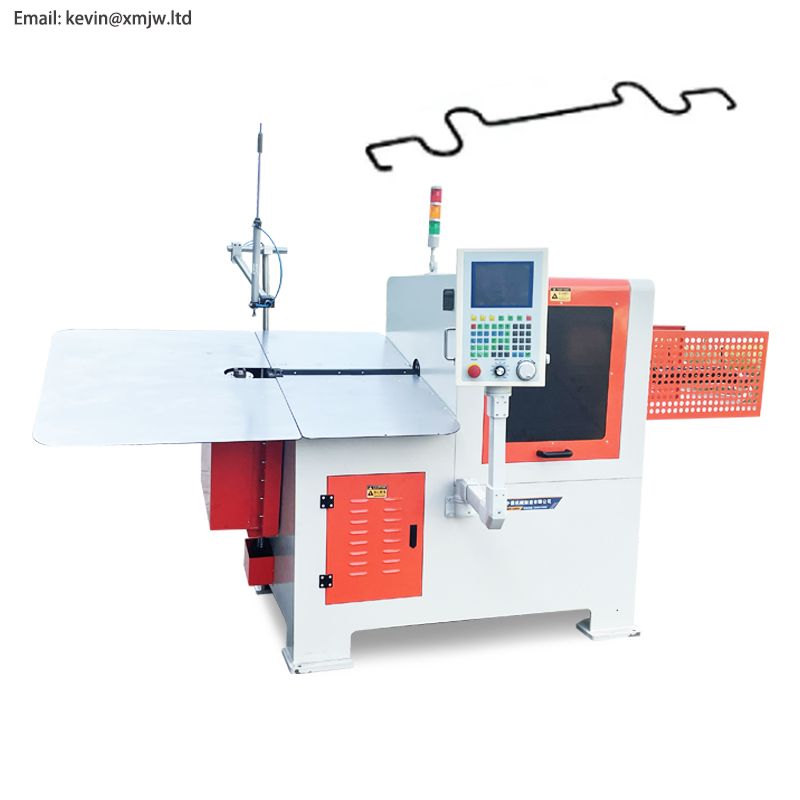

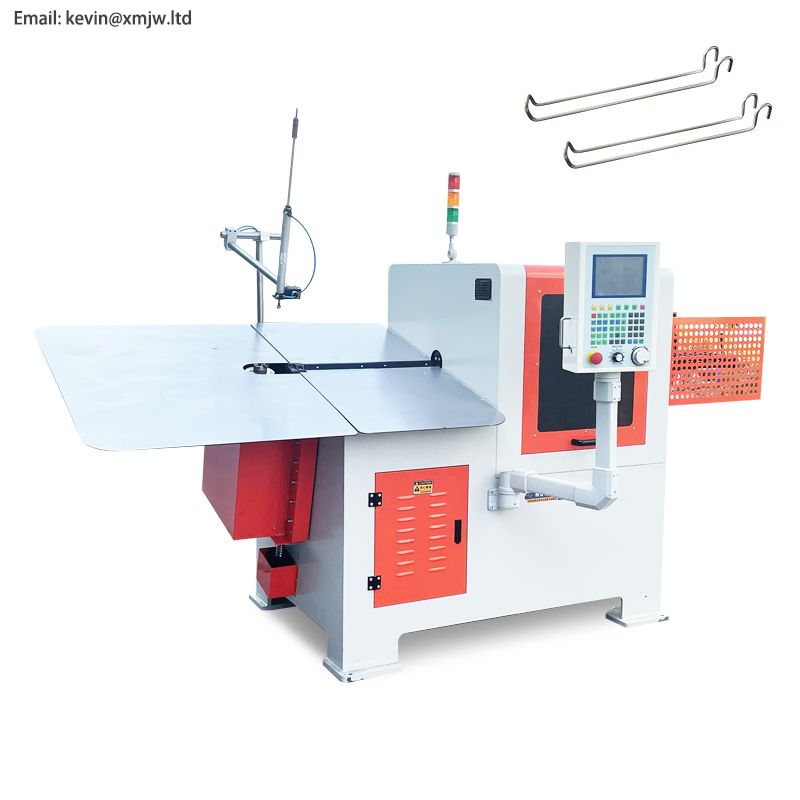

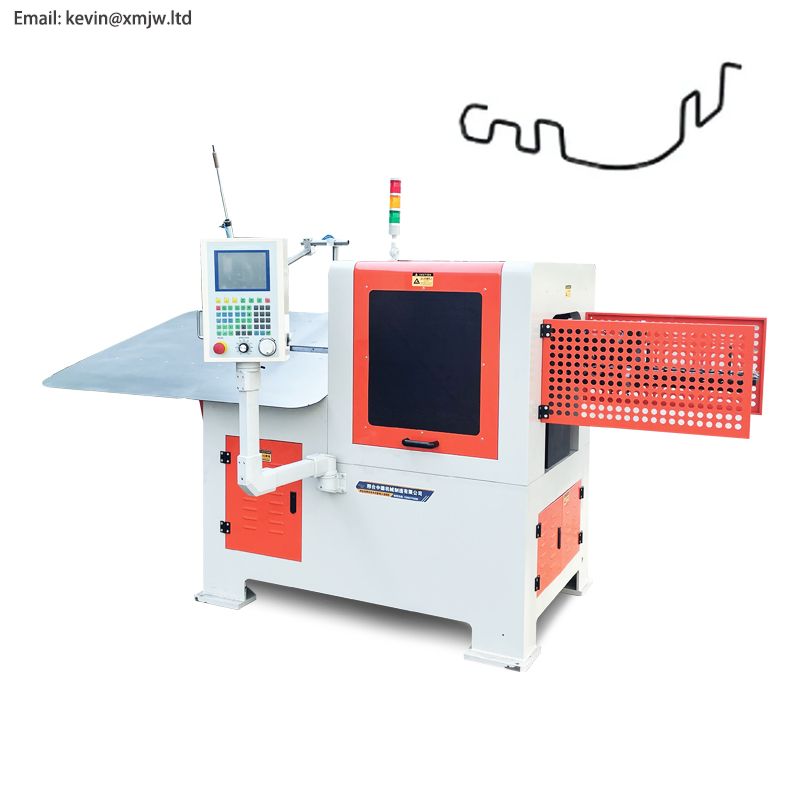

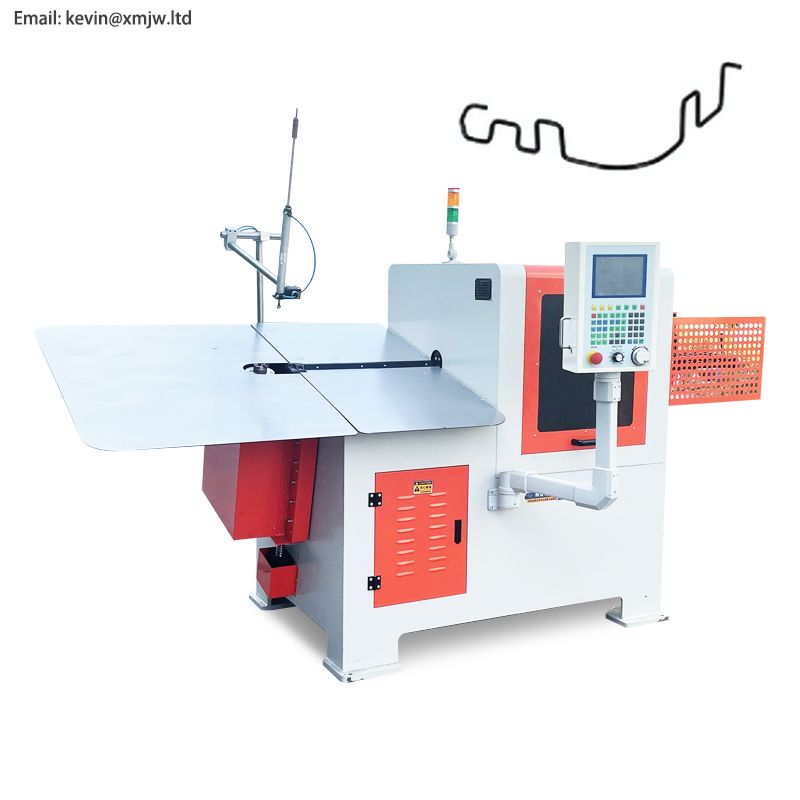

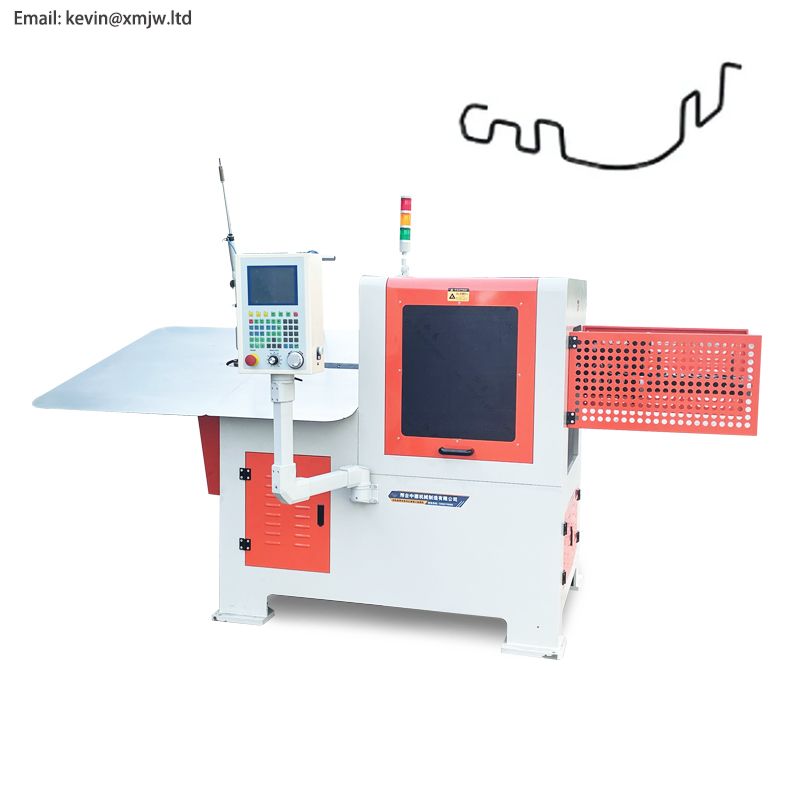

Automatic 3d wire forming machine detailed show :
| Applicable Industries | Building Material Shops;Manufacturing Plant;Retail;Construction works;Energy & Mining;Food & Beverage Shops;Other;Advertising Company |
| Applicable wire | round wire;flat wire and square wire |
| Automation | Automatic |
| Bend Angle | 360 degree |
| color | Yellow or customized |
| Condition | New |
| Control system | CNC Control |
| Core Components | Engine;Motor;CNC;bending mold and cutter;wire-feeding wheels and straightening wheels |
| Extra Services | End Forming |
| Key Selling Points | Competitive Price |
| Machine Type | coil wire bending machine |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Material / Metal Processed | Carbon steel |
| Number of Axis | 4 Axis |
| Packing | Wooden Case +iron Pallet |
| Place of Origin | Hebei;China |
| Power | CNC |
| Product name | automatic 3d wire forming machine |
| Raw Material | Steel Bar |
| Showroom Location | None |
| Type | Multi Functional |
| Video outgoing-inspection | Provided |
| Voltage | 220V/380V/415V/440V/customized |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 1650 |
| Wire diameter | 2-8mm |
| Year | latest production |
