4030 2200W 2.2KW CNC Router Metal Egraving Machine 800W 1500W Woodworking Milling Steel Engraver Mach3 Ball Screw 3Axis
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230811784798
- Availability: 1080000
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
3040 | |||||
Attribute | LPT 3axis | LPT+usb cable 3axis | |||
Axis | 3axis | 3axis | |||
Interface | LPT port | LPT port+usb cable | |||

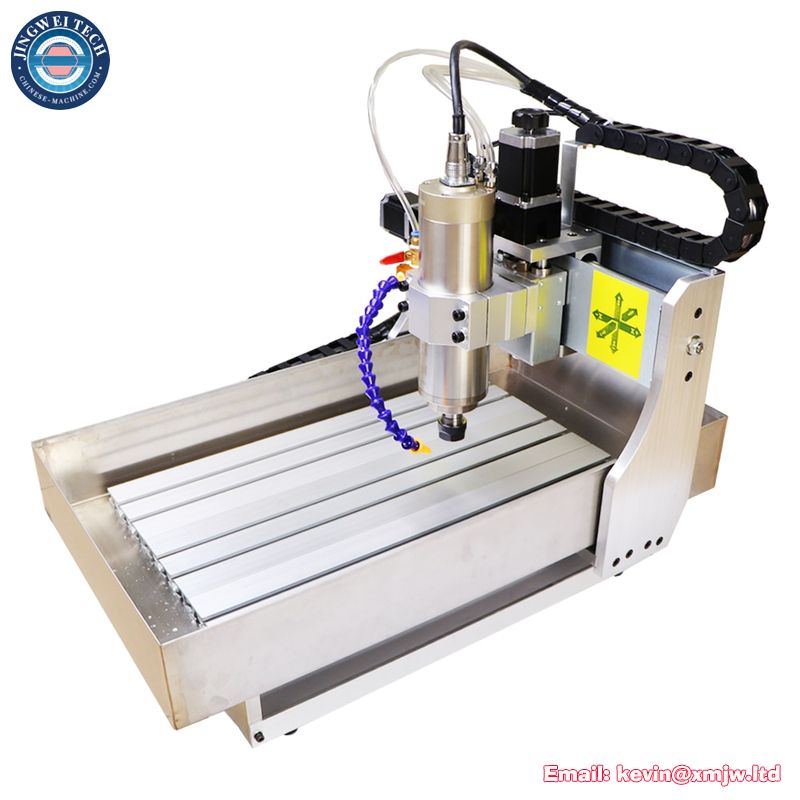

water tank | optional | optional | |||
Toolauto-checking | YES | YES | |||
Spindle Motor: | 800W/15500W/2200w | 800W/1500W/2200w | |||

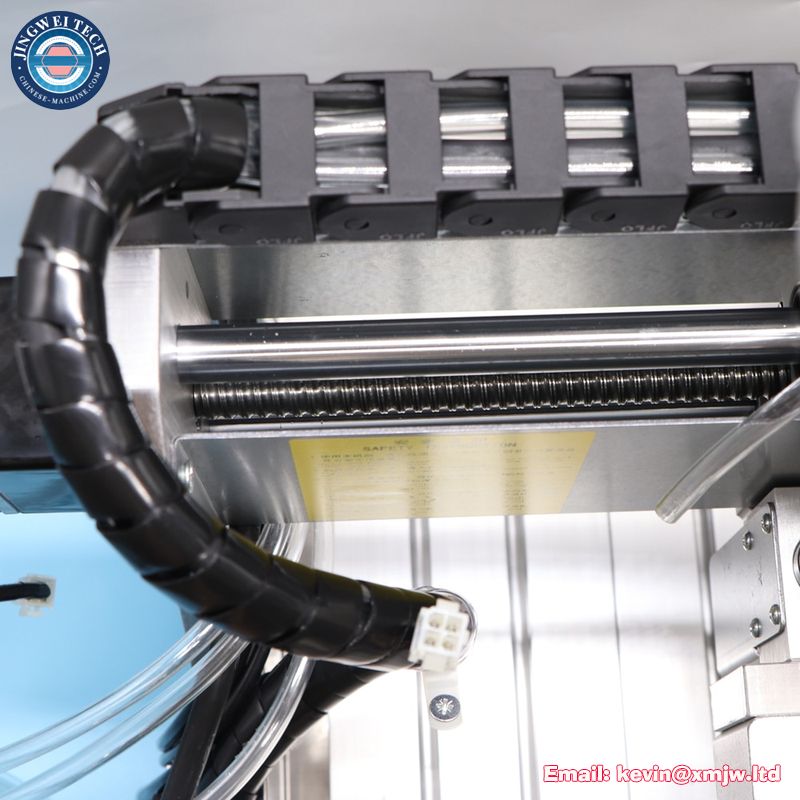

Type of screw | 1605 Ball screw | 1605 Ball screw | |||
Weigh: | 36-46KG | 36-46KG | |||
Machine Dimensions: | 660X570X450mm | ||||
Rack material: | 6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) | ||||
Engraving area: | 300X400mm | ||||
Z-Axis Stroke: | 60mm, Engraving depth depends on the length of the tool edge | ||||
Acceptable material thickness: | 60mm if you choose with water tank option, Acceptable material thickness:will be 120mm | ||||
Rail type: | Chromeplate shaft+Linear Bearings,Surface hardening 61HRC | ||||
Spindle motor: | 800w/1.5kw. 2.2KW VFD water cooling spindle | ||||
Collet type: | 800W/1.5KW- ER11. 2200W- ER16, | ||||

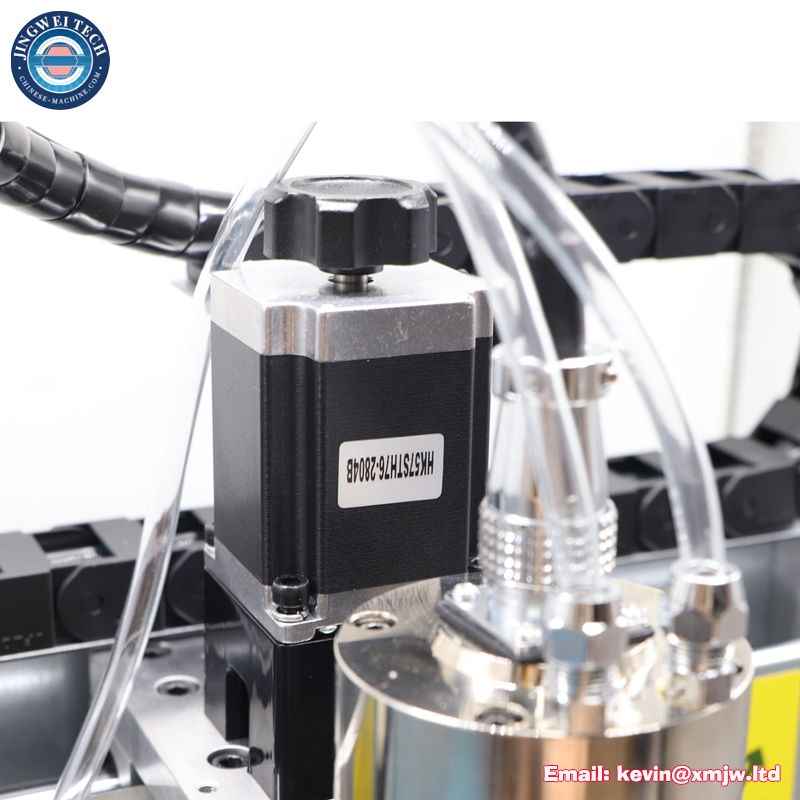

Stepper motor and drive: | two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive. | ||||
Maximum operating speed: | 4000mm/min (Engraving speed : 300-3000mm/min) | ||||
Repeat positioning Accuracy: | ≤0.03mm | ||||
Software Compatability: | Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) | ||||
Command code: | G code/.nc/.ncc/.tab/.txt | ||||
Rotation Axis (4th Axis): | No rotary axis, if need it, price add USD235 | ||||
Sink Height is about 10CM
| axis | 3axis |
| Certification | CE |
| CNC or Not | CNC |
| Condition | New |
| Is Smart Device | no |
| Model | CNC Router 4030 |
| Model Number | CNC Router 4030 |
| Origin | Mainland China |
| Repeat positioning Accuracy | less than 0.01mm |
| Spindle | water cooled spindle |
| Type of screw | 1605 Ball screw |
