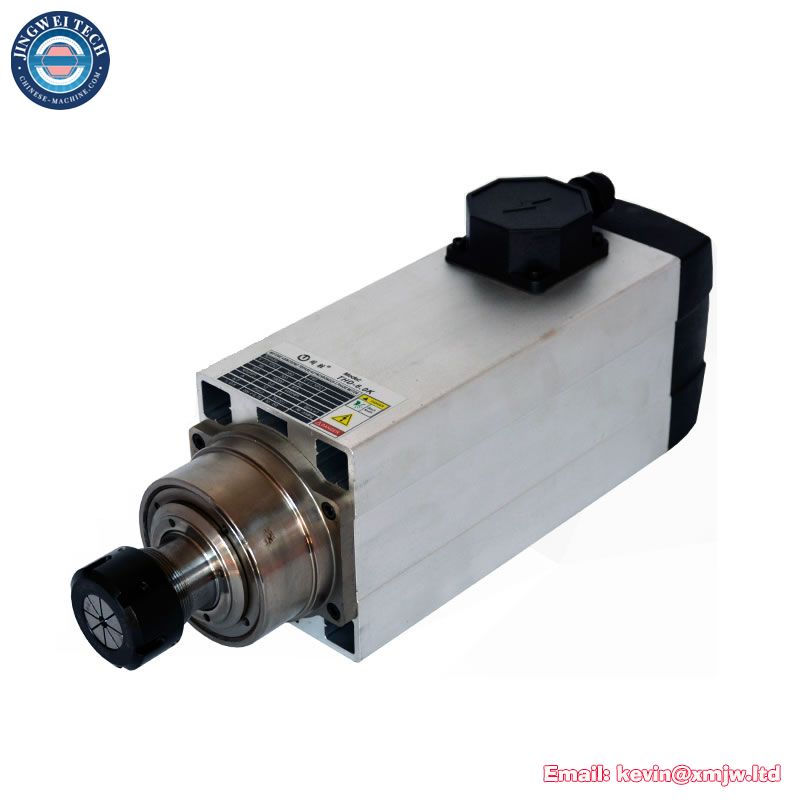

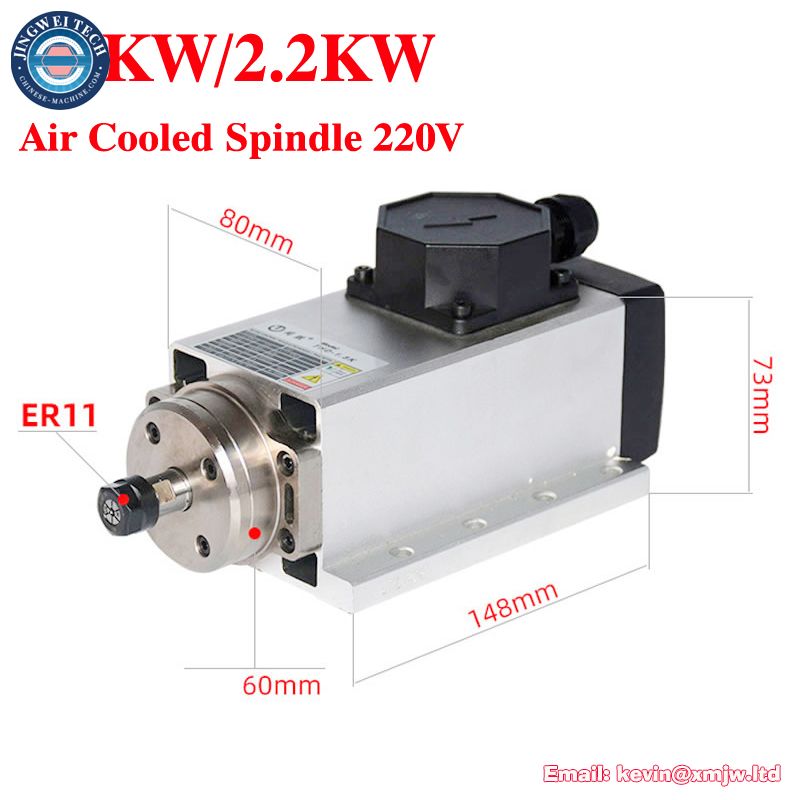

CNC Air Cooled Square Spindle Motor 1.5KW 2.2KW ER11 ER20 Chuck 1500W 2200W Air Cooling 220V For CNC Router Engraving Machine

  • Inquiry Email: sales@cablecutting.net
  • Product Code: CN230812778564
  • Availability: 18000

CNC Air Cooled Square Spindle Motor 1.5KW 2.2KW ER11 ER20 Chuck 1500W 2200W Air Cooling 220V For CNC Router Engraving Machine

Feature

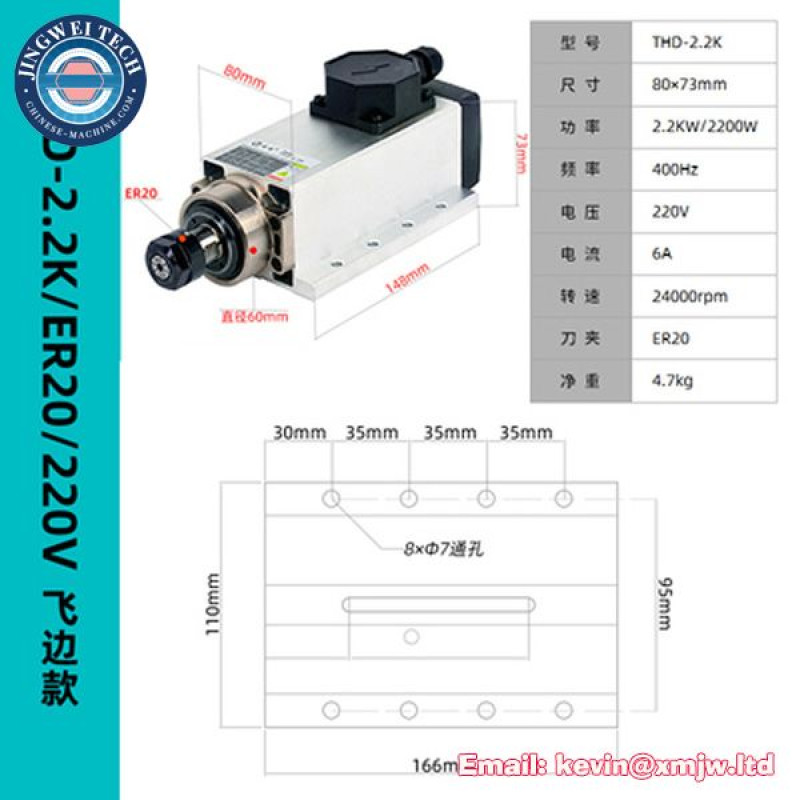

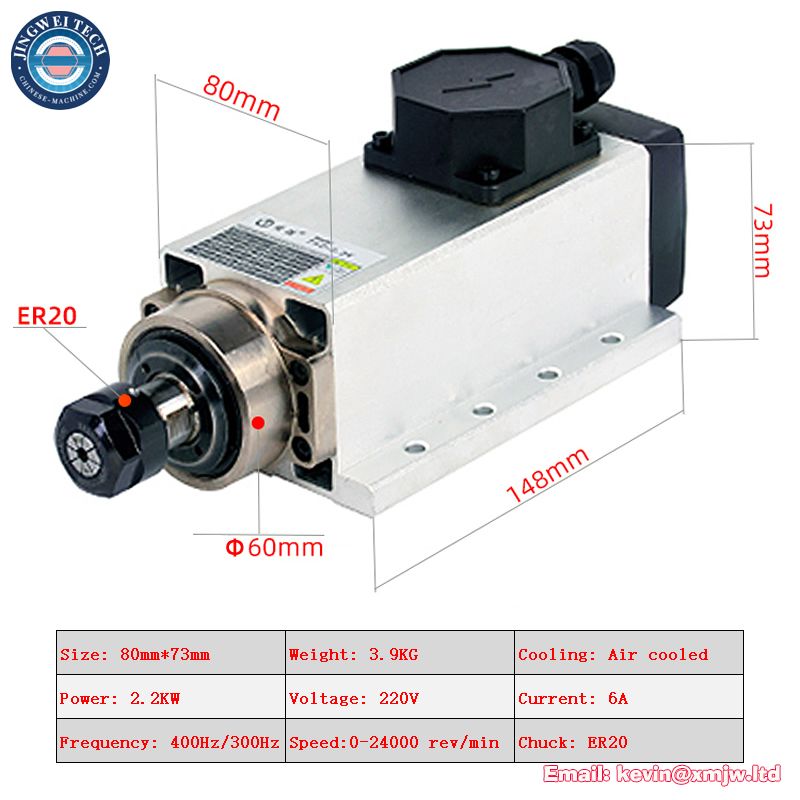

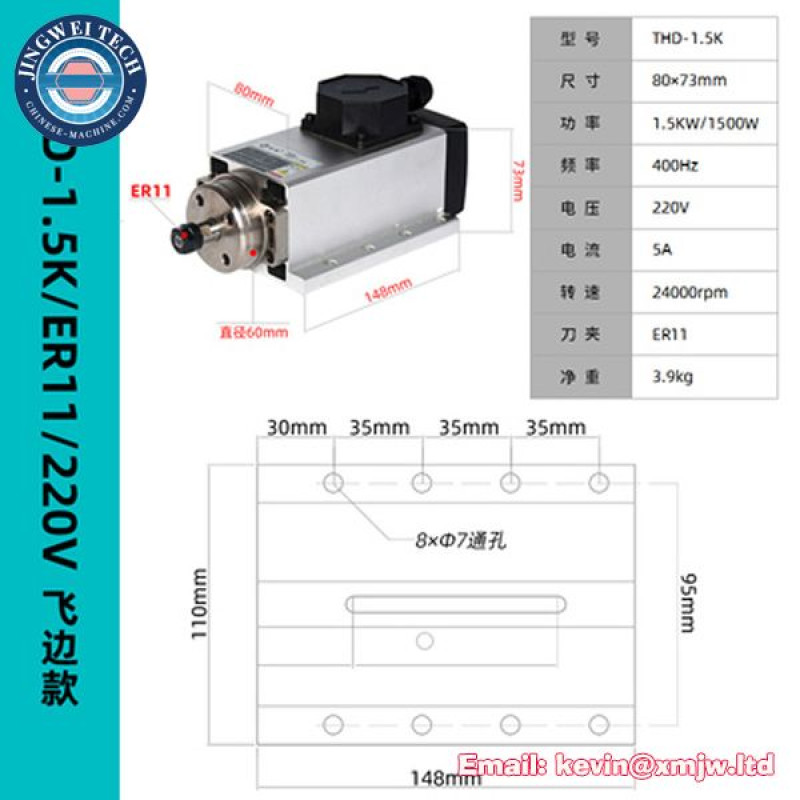

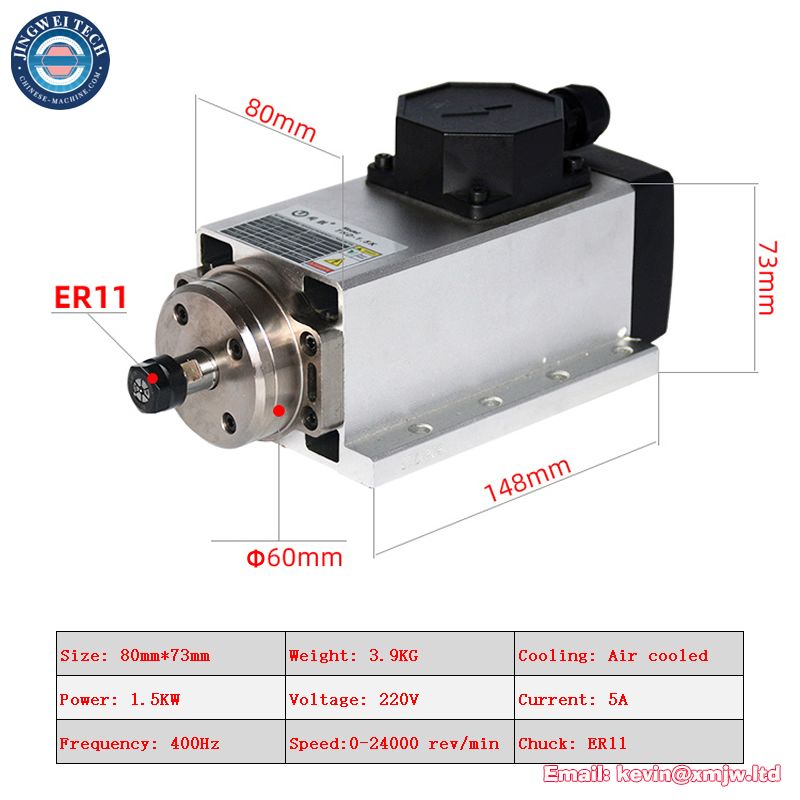

Power: 1500W/2200W

Voltage: 220V

Current: 5A(1.5KW), 6A(2.2KW)

Frequency: 400Hz

Speed: 0-24000 rpm

Cooling: Air cooling

Runout Off: 0.1- 0.005

Bearings: C7002 x2 + C7002 x2

Collet: 1.5KW ER11 2.2KW ER20


Package Included

1 x Square Air-cooled Spindle Motor


NOTE

1. Our spindles are NOT suitable for XSY
Inverter.

2. Please pay attention to the frequency of
the spindle while setting parameter, the frequency of inverter should be the
same the spindle.


Application Milling
Certification CE
Drive Motor
Maximum Torque /
Model CNC Air Cooled Square Spindle Motor 1.5KW 2.2KW
Model Number CNC Air Cooled Square Spindle Motor 1.5KW 2.2KW
Operating Speed 0-24000 rpm
Origin Mainland China
