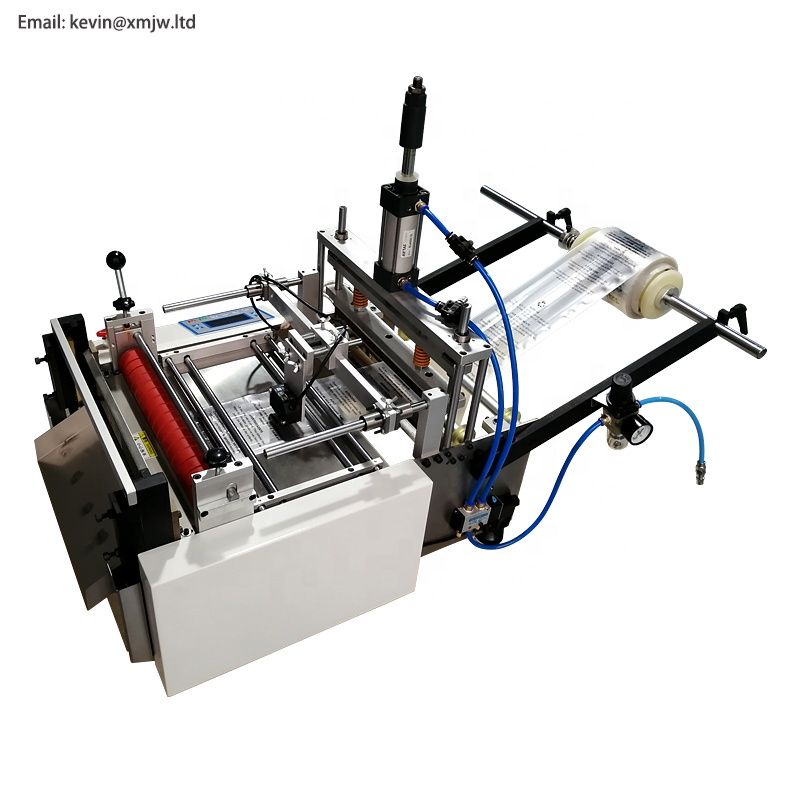

Electric eye automatic heat sealing cold cutting PE bag making machine PVC bag opp bag making machine equipment machine
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230816297534
- Availability: 500
Product Description
Electric eye automatic heat sealing and cold cutting PE bag making machine PVC bag opp bag bag making machine equipment machine
| Pdoduct name | Automatic bag making machine |
| Product model | HDK-300ZDS |
| Power supply | 220V 50/60Hz |
| Cutting length(mm) | 0.1-9999.9mm |
| Cutting speed | 30-120pcs/min |
| Heat sealing width | 1-280mm |
| Cutting precision | 0.1mm |
| Weight | 70kg |
| Size (L×W×H) | 580*560*730(mm) |
| Feeding motor | Stepper motor |
| Cutter motor | AC motor |
| Cutter material | High-speed steel |
| Heat sealing method | Pneumatic |
Features:
1. Using microcomputer control, the length, speed and quantity can be adjusted arbitrarily.
2. The overall structure design is reasonable and durable.
3. The operation is simple, instead of manual labor, one machine can hold 3 to 5 people.
4. Wide application range, suitable for producing various plastic bags such as PE flat bags, PVC heat shrinkable bags, anti-static bags, OPP bags, etc.
5. With inlaid front steel blade, it has higher hardness, more wear resistance and long service life.
6. The heat-sealing device can be disassembled and replaced, and the temperature is adjustable, suitable for sealing various materials and thickness materials.
| After Warranty Service | Video technical support;Online support |
| After-sales Service Provided | Online support;Video technical support |
| Applicable Industries | Manufacturing Plant;Food & Beverage Factory;Food Shop;Printing Shops;Energy & Mining;Food & Beverage Shops;Advertising Company;Other |
| Bag Type | Plastic bag |
| Brand Name | Haidike |
| Computerized | Yes |
| Condition | New |
| Core Components | Motherboard |
| Cutter material | High-speed steel |
| Cutter motor | AC motor |
| Cutting length(mm) | 0.1-9999.9mm |
| Cutting precision | 0.1mm |
| Cutting speed | 30-120pcs/min |
| Dimension(L*W*H) | 580*560*730mm |
| Feeding motor | stepper motor |
| Feeding width | 1-280mm |
| Key Selling Points | Multifunctional |
| Local Service Location | None |
| Machine Type | Bag Forming Machine |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2021 |
| Material | Plastic |
| Max Speed | 30-120pcs/min |
| Pdoduct name | Heat Sealing Cold Cutting Bag Making Machine |
| Place of Origin | Guangdong;China |
| Power supply | 220V 50/60Hz |
| Product Model | HDK-300ZDS |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Voltage | 220V |
| Warranty | 1 Year |
| Warranty of core components | 3 years |
| Weight | 70kg |
