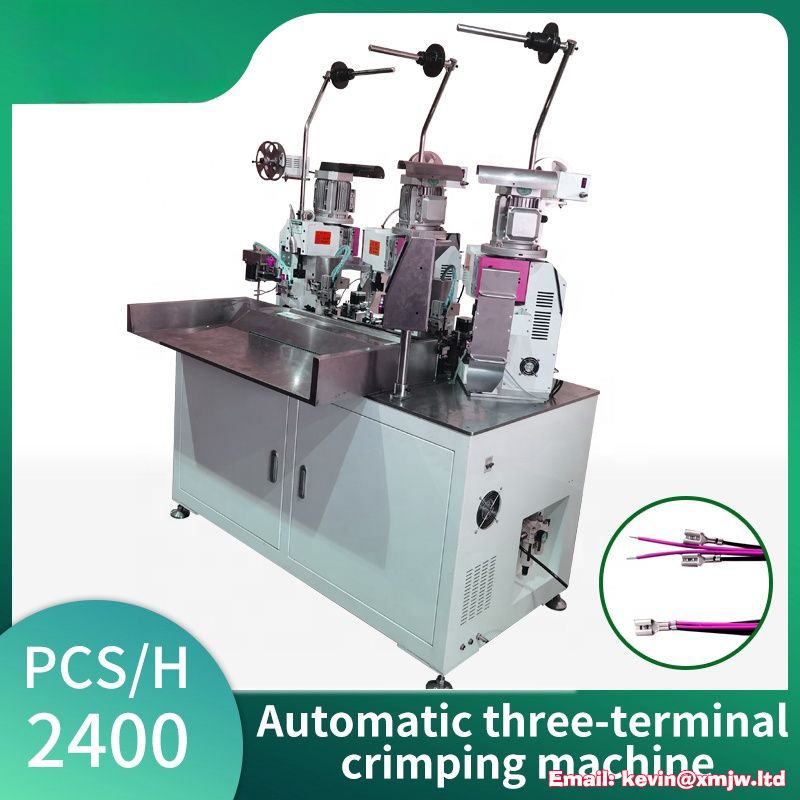

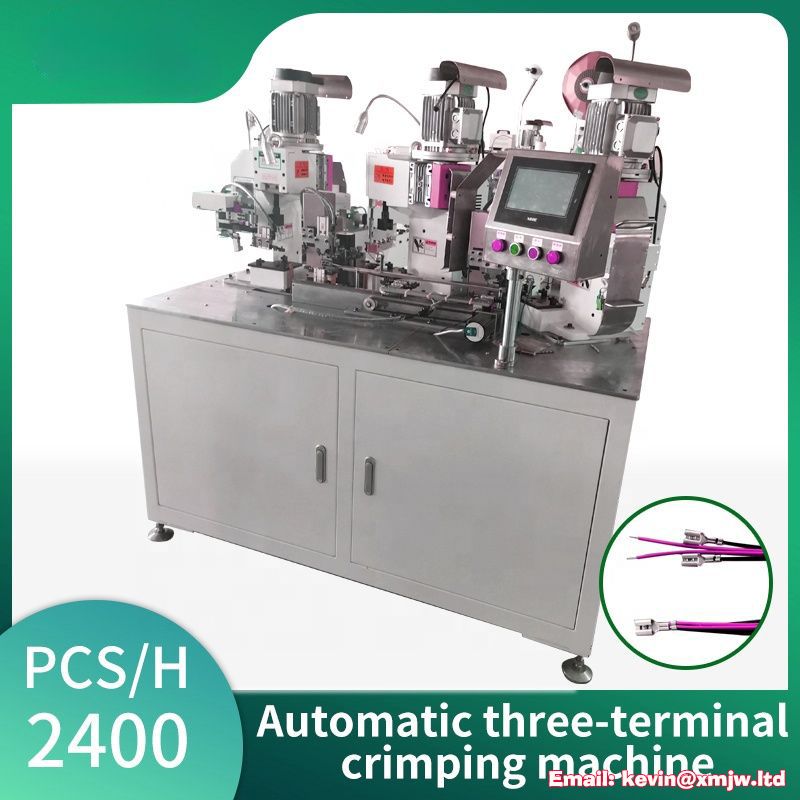

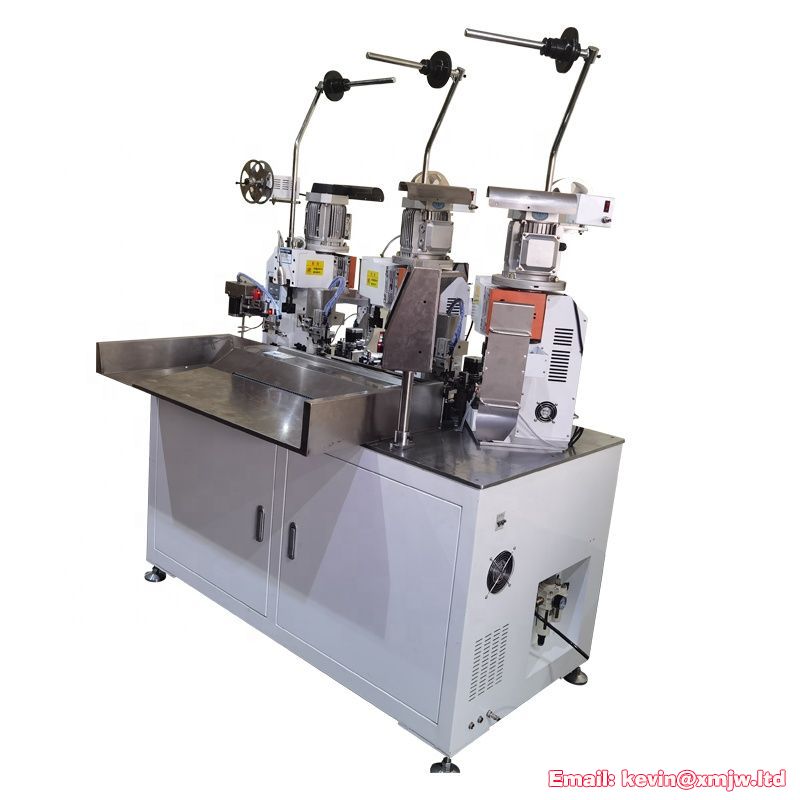

Full Automatic Cable Electric Wire Cutting Stripping Straight Flat Terminal Crimping Machine
Price in reward points: 27200
- Brand: Turing
- Product Code: CN230821572384
- Availability: 500
Product Description
Name | Fully Automatic jacket cable strip outside cutting and stripping terminal crimping machine / horizontal straight flat terminal crimping machine |
Power | 2.5 KW |
speed | 2400 pcs per hour |
cutting length | 50-9999mm |
pressure | 2 Ton |
Wire Range | AWG16-28# |
Weight | 480 kg |
Suitable terminal: Horizontal type, vertical type, flag type
Operation mode: Automatic operation/ manual operationCutting tolerance : When the cutting length is less than 100mm,the deviation is 0.3mm+(set cutting length x0.002)
When the cutting length is more than 100mm,the deviation is 0.5mm + (set cutting length x0.002)Stripping length: FRONTEND:1.00~8.00MM(HALF STRIPPING LENGTH: 2.00~80MM)
REAR END:1.00~8.00MM(HALF STRIPPING LENGTH:2.00~6.0MM)
Processing capacity41 three-end crimping terminals per minute (equivalent to#28~#16,when the cut length is 120mm)Two lines and 63 lines/minute(equivalent to #28~#16.when the cutting length is 120mm)Single-line double-end crimping: 70 strips/minute(equivalent to #28~#16, when the cutting length is100mm)Single-ended crimping: 75 strips/minute (equivalent to #30~#16,when the cutting length is 100mm
| After-sales Service | Online Support |
| Air Supply | 0.5-0.6MPa |
| Application | Cable Making Industry |
| Brand Name | Turing |
| Cutting length | 50-9999mm |
| Cutting tolerance | +-0.2mm |
| Keywords | Automatic Crimping Machine |
| Model Number | TR-T08 |
| Name | Cable Making Equipment |
| Place of Origin | Guangdong;China |
| Power | 2.5KW |
| Power supply | 220V/50Hz |
| Usage | Multifunctional;horizontal straight flat terminal crimping machine |
