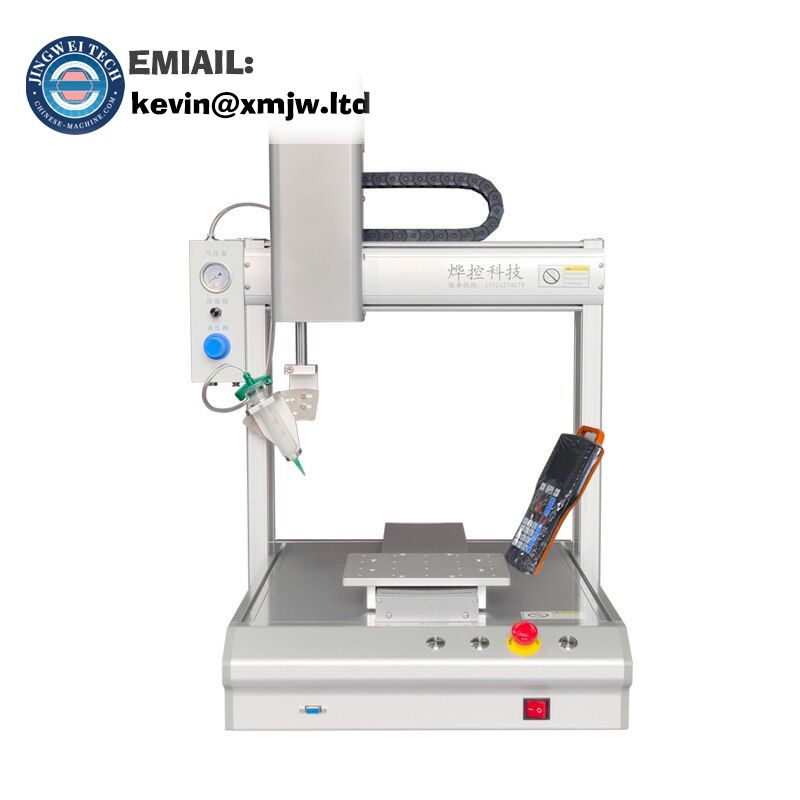

360° Rotating Inner Circle PVC Glue Dispenser Industrial 3 Axis Desktop Liquid Speaker Glue Dispensing machine
- Brand: unbranded
- Product Code: CN230810496035
- Availability: 100
Glue Dispensing Feature
It runs alternately with a double platform, saving the time for the product to be taken and put.
It is independent of the mold. It is an aluminum profile casting structure with beautiful appearance.

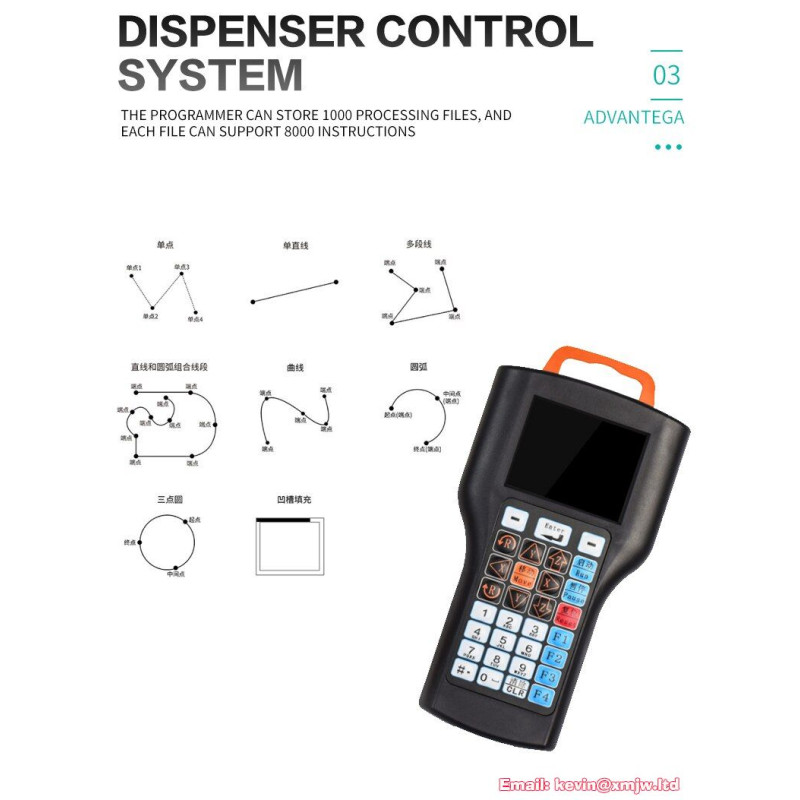

It has a hand-held teaching programmer, which is fast and easy to program.
Its glue speed and glue amount can be set separately.
It is controlled by a high precision stepping motor, and the trail is accurate.
It can finish any shape point glue, such as space point, line, arc, etc.
It contains a variety of glue needles, syringes, glue valves and controllers to meet different requirements.
Model | YK-D331R Four-axis rotating syringe dispenser |
Dispensing range X/Y/Zmm | 300/300/100/359° |
Programmatically | Teaching programming or graphics import |
Glue frequency | 5 times/sec |
Maximum load | 10kg |
Moving speed (mm/sec) | 0-500 |
Repeatability | ±0.02mm |
way to control | Motion control card + handheld box |
Number of program records | 100 groups |
Display method | LCD teaching box |
Input power | Full voltage AC110V~200V |
Spit pressure adjustment range | 0.05MPa-0.99Mpa |
Our factory
| Application Materials | Plastic |
| Certification | NONE |
| is_customized | Yes |
| Model Number | JL-D331 |
| Origin | Mainland China |
| Type | Epoxies |
