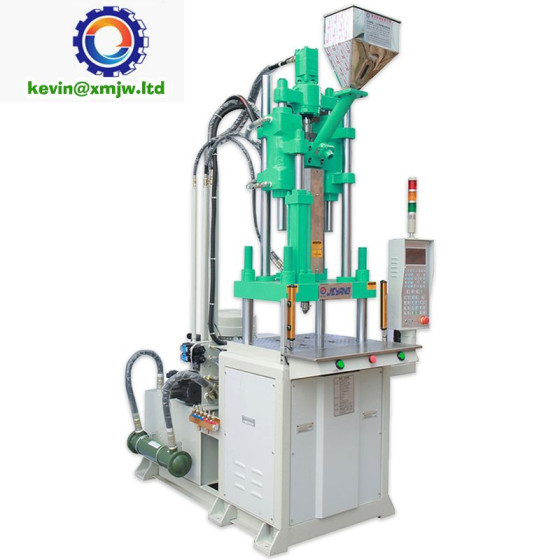

plastic machine pet preform machine vertical injection moulding machine
Price in reward points: 25200
- Brand: JIE YANG
- Product Code: CN230813842292
- Availability: 500
High Quality China Factory plastic machine pet preform machine vertical injection moulding machine
Product Description
Product Detail
| Warranty | 1 Year |
| Machine Color | Customized |
| Machine Weight | 5000kg |
| Screw Diameter | 42/45/48mm |
| Max. Open daylight | 685/485mm |
| Injection pressure | 1027/895/790 kg/cm2 |
| Keyword | Vertical Plastic Injection Moulding Machine |
| MACHINE DIMENSION | 2.0m*1.3m*3.2m |
| Platen Size | 740mm*545mm |
| Min. Mold Height | 430/230mm |
| Product Keywords | thermoplastic |
Machine Application
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
| After-sales Service Provided | Video technical support |
| Applicable Industries | Manufacturing Plant |
| Brand Name | JIE YANG |
| Condition | New |
| Core Components | Motor |
| Ejector Force(kN) | 26.5 kN |
| Ejector Stroke(mm) | 60 mm |
| Injection pressure | 1027/895/790 kg/cm2 |
| Injection Rate (g/s) | 142.2 g/s |
| Injection Weight (g) | 240 g |
| Key Selling Points | Competitive Price |
| Keyword | Vertical Plastic Injection Moulding Machine |
| Machine Color | Customized |
| Machine dimension | 2.0m*1.3m*3.2m |
| Machine Type | Plastic machinery |
| Machine weight | 5000kg |
| Machinery Test Report | Provided |
| Max. Open daylight | 685/485mm |
| Mold Height(mm) | 180 - 380 mm |
| Open Stroke(mm) | 250 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid;Bakelite |
| Plastic Type | Thermoplastic |
| Power (kW) | 15 kW |
| Screw diameter | 42/45/48mm |
| Screw diameter (mm) | 45 mm |
| Screw Speed (rpm) | 0 - 200 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 254.3 cm³ |
| Type | injection molding machine |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year;1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 4200 kg |
Tags: plastic machine, pet preform machine, vertical injection moulding machine
