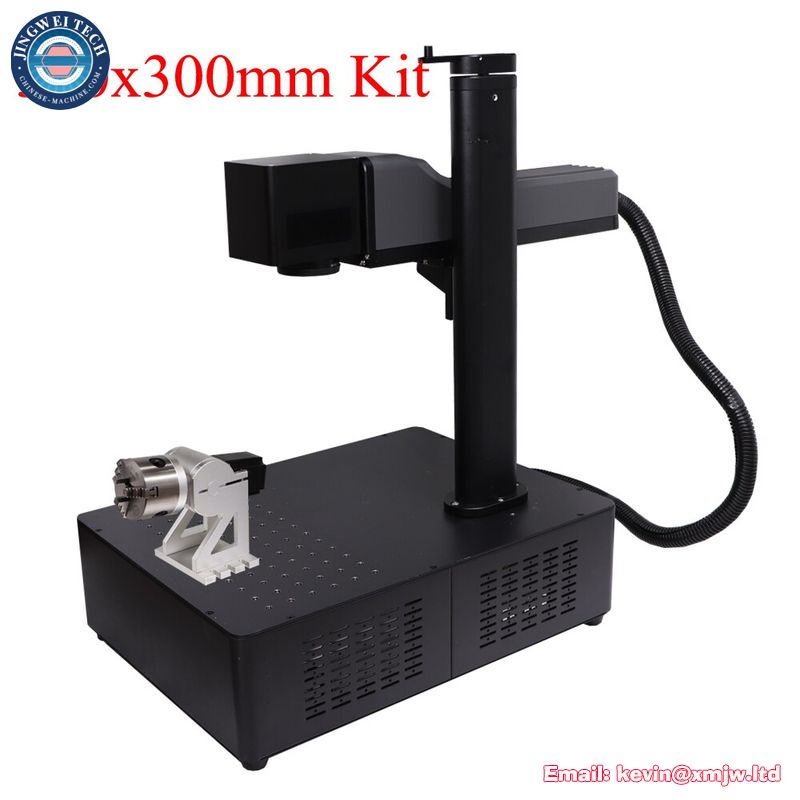

JPT MOPA M7 60W Fiber Laser Marking Machine 50W 30W 20W Raycus MAX Metal Steel Gold Silver PVC Engraving with Rotary Axis

JPT MOPA M7 60W Fiber Laser Marking Machine 50W 30W 20W Raycus MAX Metal Engraving Machine with Rotary Axis for Steel Gold

Technical Parameter:

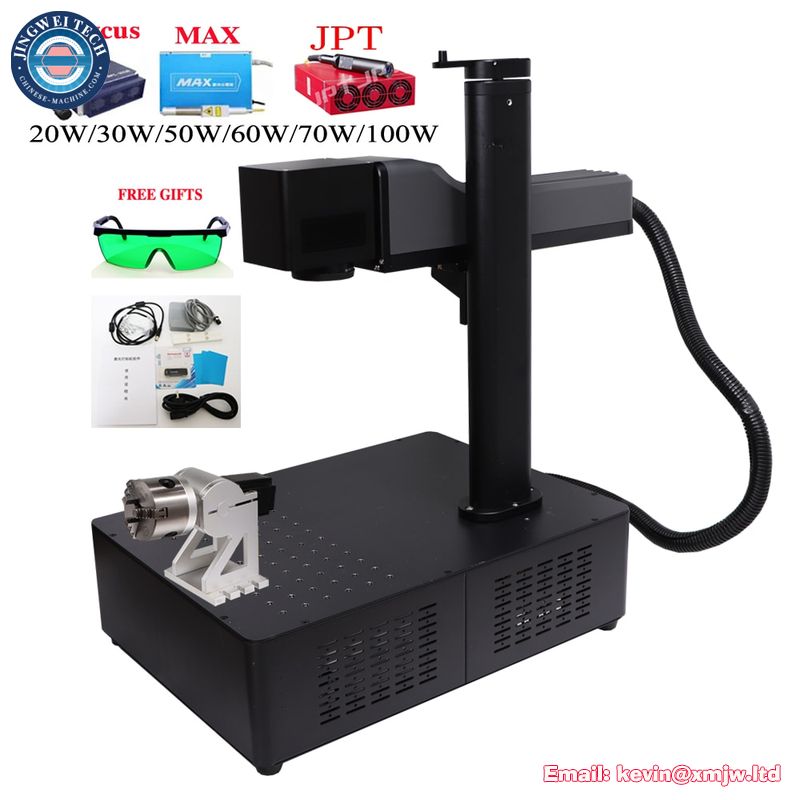

Laser Source : JPT/ MAX / RAYCUS brand

Laser power: 20W/30W/50W/60W

Working Area : 110*110mm(Initial) Or 20W can choose 70mm, 150mm. 30W can choose 70mm, 150mm. 200mm, 50W can choose 70mm, 150mm, 200mm, 300mm.

Cooling Mode : Air Cooling

Laser Wavelength: 10.64 um

Frequency of pulse : 20-100 KHz

Marking Depth: ≤0.3 mm

Marking Speed: ≤18000 mm/s

Marking Lines: 1-10 lines

Minimum Line Width: 0.01 mm

Minimum Character: 0.15 mm

Repeatability Accuracy: ±0.002 mm

Resolution Ratio: 0.1 mm

Marking Content: Text, pattern, date, bar code, etc

Operation System: Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10

Control Software: EZCAD ENGLISH Control Software

Graphic Format Supported: BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Unit Power: 500W

Operation Temperature: 5°C-40°C

Relative Moisture: ≤ 90%, no fog

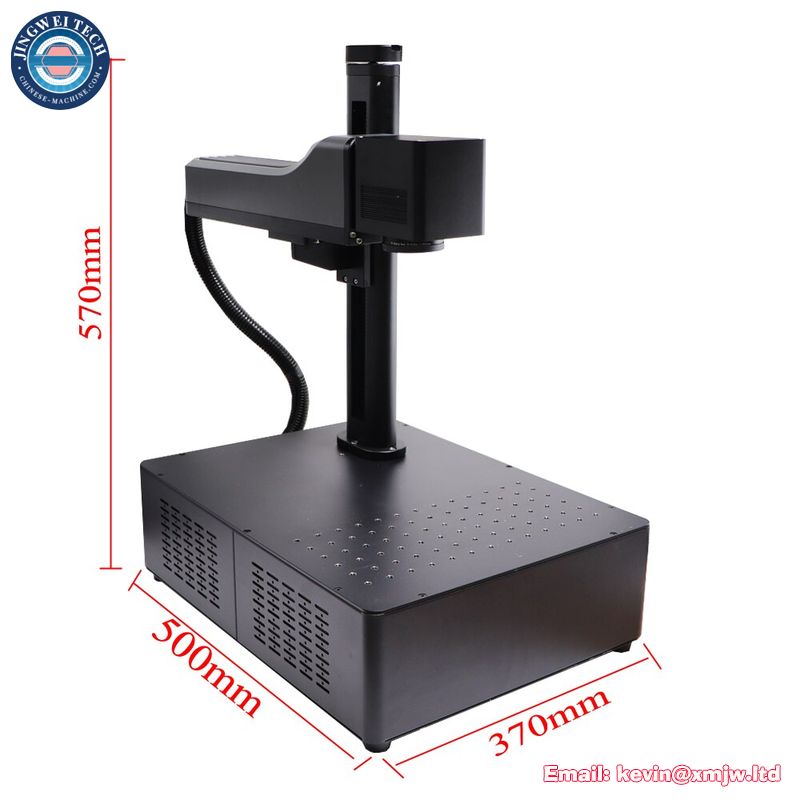

Dimensions(L*W*H): 330 x 500 x 570 mm

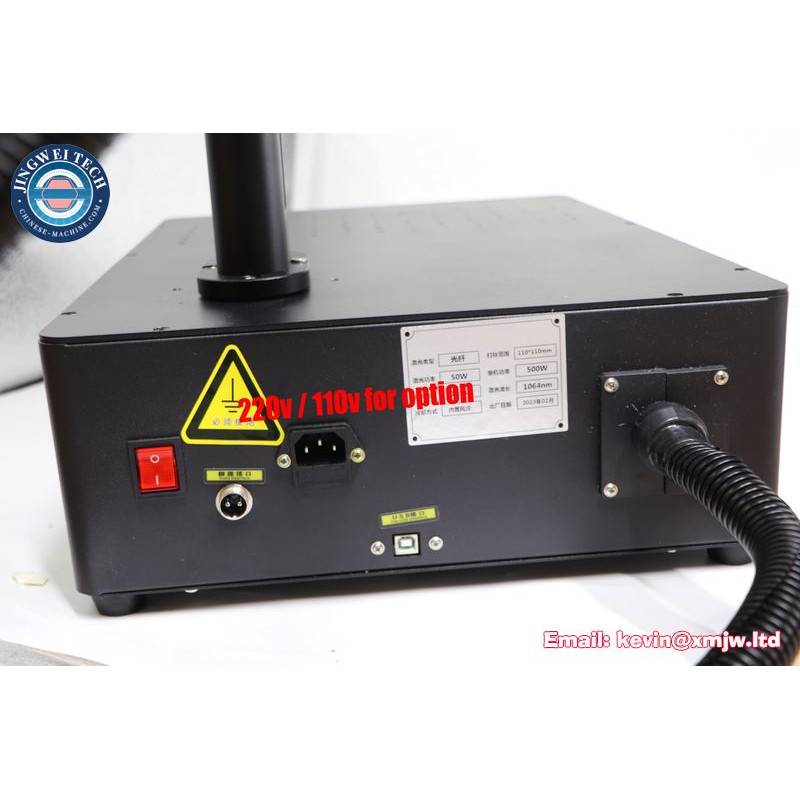

Power supply requirements: 220 V or 110V

Weight: 18KG

Warranty: 24 months

Packing List:

Machine x 1

USB disk x1 (englsih Software and english manual)

Wrench x 1 kit

Power cable x 1

USB data cable x 1

Test marking plate several

Plastic Align rod x 2
