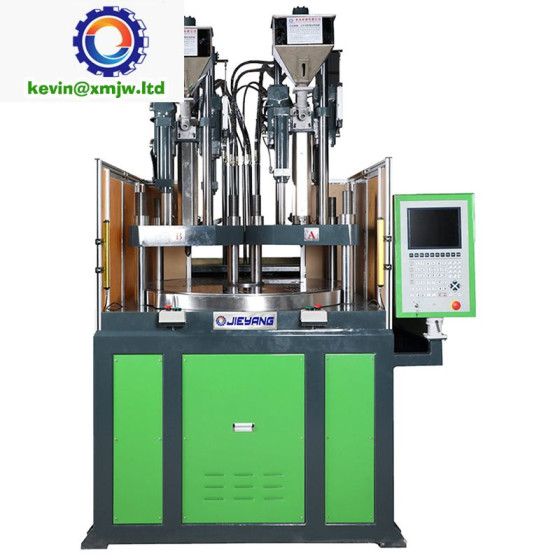

Two color plastic injection machine vertical tool handle coated with plastic molding machine
- Brand: JIE YANG
- Product Code: CN230813249638
- Availability: 500
Two color plastic injection machine vertical tool handle coated with plastic molding machine
1) Load double-mode alternated side board in JY-DM double-color machine.One slow die and two upper dies are loaded in the machine. Alternate the dies from left to right at the same flat surface. After the completing of one color, don’t take out the produce two-color products, Because high working safe features, working efficiency can be advanced in a large range. The finished goods are propped up to outside for completion.
2) Two single machines can be operated independently. Two machines can be also connected to operate.
3) When use single machine, thimble is built in.
4) Phase 5 of screw single machine controls temperature.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Low-pressure closed die assembly can protect the safety of die.
Double Color Multi Two Color Plastic product Manufacturing Equipment Vertical Plastic Injection Moulding Machine
| After-sales Service Provided | Engineers available to service machinery overseas |
| Applicable Industries | Building Material Shops;Manufacturing Plant;Construction works |
| Brand Name | JIE YANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw |
| Ejector Force(kN) | 17.2 kN |
| Ejector Stroke(mm) | 45 mm |
| Injection pressure | 1171/996/810 kg/cm2 |
| Injection Rate (g/s) | 72 g/s |
| Injection Weight (g) | 120 g |
| Key Selling Points | Automatic |
| Keyword | Vertical Plastic Injection Moulding Machine |
| Machine dimension | 3.4m*2.1m*1.8m |
| Machine Type | Hydraulic;Plastic machinery |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2022 |
| Max. Open daylight | 480/580mm |
| Min. Mold Height | 200/150mm |
| Mold Height(mm) | 230 - 330 mm |
| Open Stroke(mm) | 250 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid;PF |
| Plastic Type | Thermoplastic |
| Power (kW) | 7.5 kW |
| Screw diameter | 30/32/35mm |
| Screw diameter (mm) | 34 mm |
| Screw Speed (rpm) | 0 - 190 rpm |
| Showroom Location | Viet Nam |
| Slide Platen Size | 830mm*400mm |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 127.3 cm³ |
| Type | Injection Moulding Machine |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 5200 kg |
Tags: Two color plastic injection machine, vertical tool, handle coated with plastic molding machine
