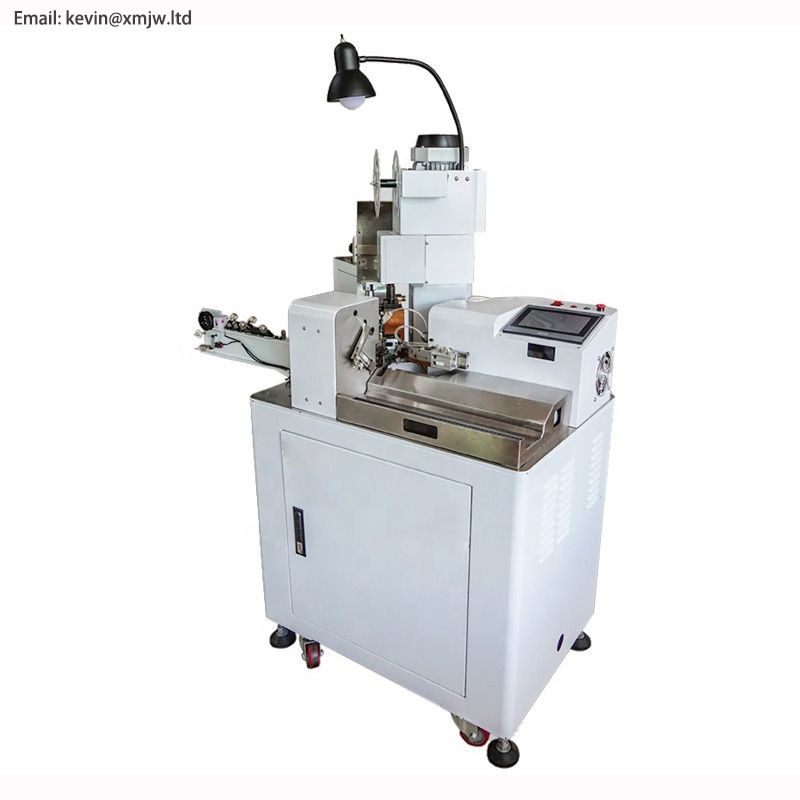

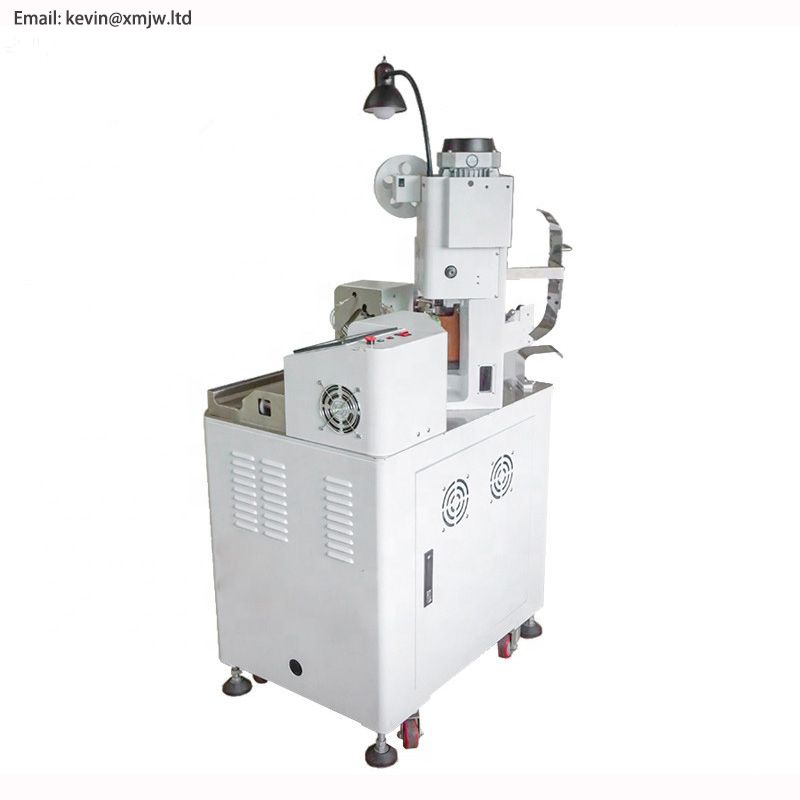

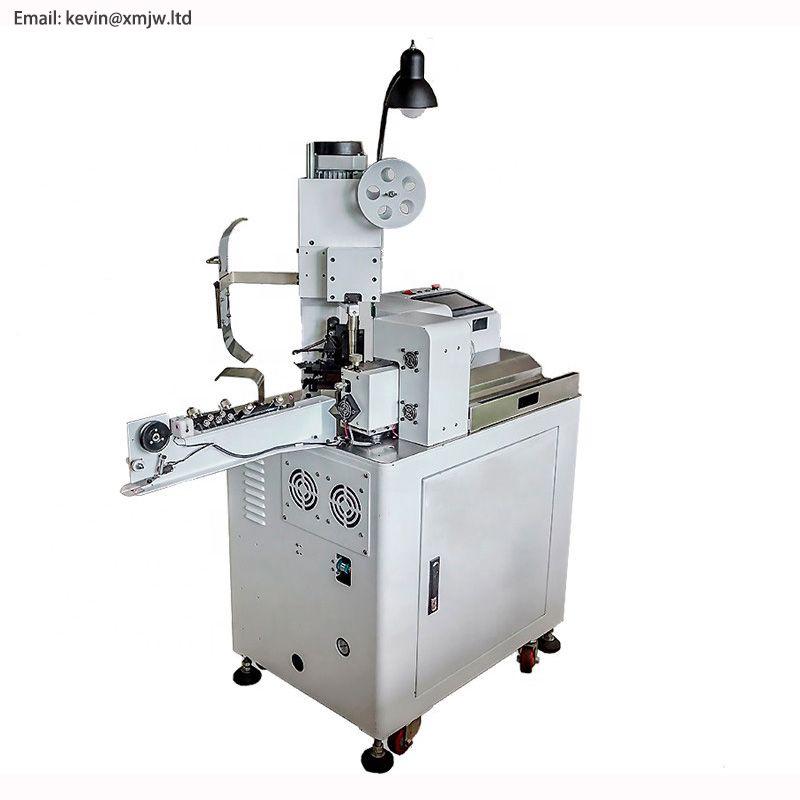

X-CM203A Fully automatic wire cutting stripping one end terminal crimping another end tinning machine
Price in reward points: 14400
- Brand: X cable Tech
- Product Code: CN230808669002
- Availability: 500
Product Description
Specification
The machine is designed for wire cutting stripping crimping and tinning. It is mainly used in wiring harness.
X-CM203A can process one wire at same time, it be handled very easy. You can learn to use it very quickly.
Feature
1.The machine is using good quality materials. Imported original parts, completely cut off the wires, stripping, terminal
pressing, etc. Accurate, easy to operate, stable performance
2. Cutter depth is adjusted by computer
3. The whole stripping length is directly set by the menu of touch panel.
4. Fast technical performance adjustment, short adjustment time, easy operation
5. Auto crimping machine suitable for horizontal, straight OTP molds. European Style Applicator is optional
pressing, etc. Accurate, easy to operate, stable performance
2. Cutter depth is adjusted by computer
3. The whole stripping length is directly set by the menu of touch panel.
4. Fast technical performance adjustment, short adjustment time, easy operation
5. Auto crimping machine suitable for horizontal, straight OTP molds. European Style Applicator is optional
Model Number | X-CM203A | X-CM203B |
Function | Wire cutting & stripping , one end crimping , another end tinning(one wire) | Wire cutting & stripping , one end crimping , another end tinning(five wire) |
Voltage | 220V/50~60hz | 220V/50~60hz |
Power Rate | 750W | 1000W |
Air Supply | 0.5-0.7Mpa | 0.5-0.7Mpa |
Cutting Length: | 27mm—9999mm | 27mm—9999mm |
Cutting Tolerance: | +/-0.1mm | +/-0.1mm |
Stripping Length: | 0.1mm-10mm | 0.1mm-10mm |
Tinning Length: | 0.1mm-10mm | 0.1mm-10mm |
Suitable wire size: | AWG14#-AWG30# | AWG14#-AWG30# |
Crimping Force: | 2.0T | 2.0T |
Applicator | OTP/ Europe Style available | OTP/ Europe Style available |
| Brand Name | X cable Tech |
| Crimping force | 2Ton |
| Cutting length | 27mm-9999mm |
| Cutting tolerance | +/-0.1mm |
| Function | cutting & stripping + one end crimping another end tinning |
| Model Number | X-CM203A |
| Place of Origin | Guangdong;China |
| Power Rate | 750W |
| Stripping length | 0.1mm-10mm |
| Suitable wire size | AWG14#-AWG30# |
| Usage | Multifunctional |
| Voltage | 220V/50~60hz |
